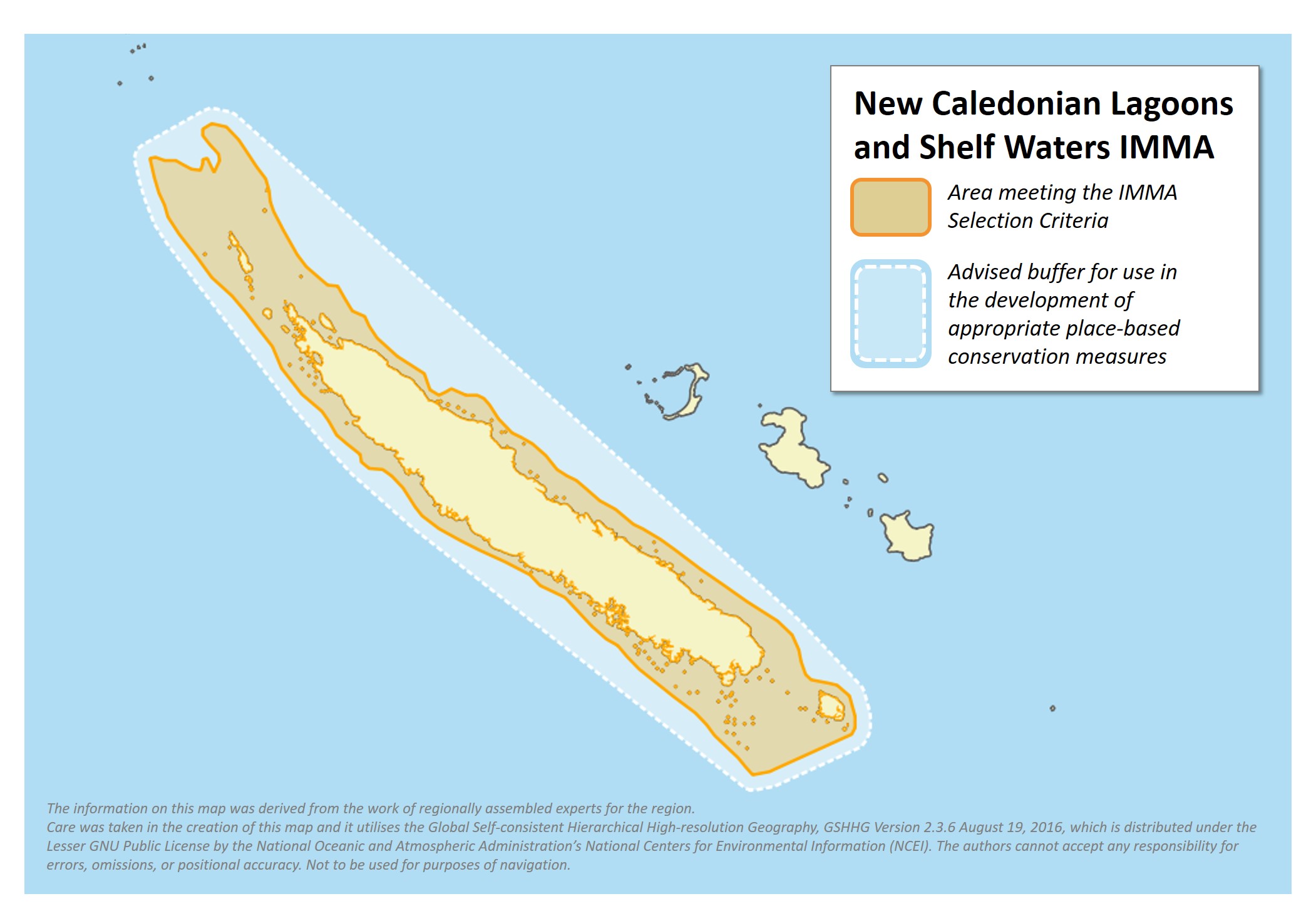

New Caledonian Lagoons and Shelf Waters IMMA

Area Size

27 799 km2

Qualifying Species and Criteria

Dugong – Dugong dugon

Criterion A; B (1, 2); C (1, 2); D (1)

Humpback whale – Megaptera novaeangliae

Criterion A; B (2); C (1); D (1)

Indo-Pacific bottlenose dolphin – Tursiops aduncus

Criterion B (1); D (1)

Marine Mammal Diversity

Stenella longirostris, Balaenoptera acutorostrata, Balaenoptera omurai

Download fact sheet


The lagoons and associated seagrass and mangrove ecosystems surrounding the main island of New Caledonia, Grande Terre, support six of the 29 species of marine mammals identified in New Caledonia: Dugong dugon, Megaptera novaeangliae, Balaenoptera omurai Balaenoptera acutorostrata spp. Tursiops aduncus, and Stenella longirostris (Garrigue 2007, Garrigue and Poupon 2013, Laran et al. 2016). These lagoons support a globally significant dugong population (Garrigue et al. 2008, Cleguer et al. 2015 and 2017), an important breeding area for humpback whales (Megaptera novaeangliae) (Garrigue et al, 2001, 2004, 2016) and small isolated populations of Indo-Pacific bottlenose dolphins of extremely low genetic diversity (Oremus et al. 2009).

Description of Qualifying Criteria

Criterion A – Species or Population Vulnerability

A globally significant population of dugong is present in New Caledonia.  The IUCN lists the species as Vulnerable at the global level, and it is believed to have declined throughout most of its range (Marsh et al. 2011).  The group of humpback whales migrating to New Caledonia belongs to the Oceania subpopulation which is classified as endangered by IUCN (Childerhouse et al. 2009).

Criterion B: Distribution and Abundance

Sub-criterion B1: Small and Resident Populations

A single baseline aerial survey of dugongs in New Caledonia in 2003 estimated a population of 2026 (± SE = 553) individuals (Garrigue et al. 2008). A second similar survey in 2008 produced a lower estimate of 606 (± SE = 200) individuals, leading to concerns that the dugong population was experiencing a decline (Garrigue et al. 2009). Four additional surveys were conducted in 2011 and 2012, generating abundance estimates that ranged from 649 (± SE = 195) to 1227 (± SE = 296) dugongs (Cleguer 2015; Cleguer et al. 2017). This data was recently reanalysed using improved methodology with depth and location specific correction factors to account for availability bias leading to a new range of abundance estimates (426 + 134 to 1,588+407 see Figure 1; Hagihara et al. 2016).

The Southern Lagoon (located off the southern main island) is intensively used by a small number of humpback whales (Garrigue et al. 2004, Constantine et al. 2012, Madon et al. 2012, Orgeret et al. 2013). The size of the population using the southern lagoon has been estimated at a maximum of 692 (95% CI: 591-806) in 2011 (Orgeret 2013).

Photo-id collected for Tursiops aduncus between 1996 and 2009, revealed high levels of re-sightings within the same areas of the lagoons and lack of matches between neighbouring areas suggest at least five demographically independent populations (Oremus et al. 2009). Local abundance estimates of these populations are in low hundreds at most. Genetic analysis revealed an extremely low diversity both at mitochondrial (only 2 haplotypes detected) and nuclear (Allelic Richness = 1 to 8.0) levels, suggesting that T. aduncus has a shallow genealogical evolutionary history in New Caledonia. Strong population differentiation was detected at the mtDNA (FST = 0.912***) and nuclear (FST = 0.105***) levels (Figure 4). Unexpectedly, high differentiation between two demographic units separated only by a 15 km long shallow plateau was found.

Sub-criterion B2: Aggregations

Dugong aggregations (i.e., group of ≥ 10 animals) were observed inside the lagoon of Cap Goulvain during the warm season and outside the lagoon during the cool season between April and September. In 2011-2014 the dugongs in the aggregations were resting and no social behaviour other than calves feeding was identified. The most likely cause of the aggregations are access to: (1) warm water and possibly reduced predation risk outside the lagoons in the cool season and (2) seagrass resources inside the lagoon (Cleguer 2015).

The area supports several humpback whale aggregation spots. Social behaviour and group composition of humpback whale aggregations overwintering in the Southern lagoon have been presented in Garrigue et al. (2001) and Derville et al. in press.

Criterion C: Key Life Cycle Activities

Sub-criterion C1: Reproductive Areas

Use of the lagoons of New Caledonia by dugong for reproduction have been reported (Garrigue et al. 2008, Cleguer 2015). Calves have been observed during aerial surveys in the same location as adults. Cleguer (2015) found that the proportion of dugong calves increased from June 2003 (7.4%) to June 2011 (18.0%) and then decreased to reach its lowest value in November 2012 (4.7%) but these variations were not significant.

The South Lagoon of New Caledonia has been identified as a reproductive area based on field-based observations. This area is used for mating and nursing, and also likely for calving, and it constitutes one of the major breeding grounds for this whale sub-stock (Garrigue et al. 2001, Derville et al. in press).

Sub-criterion C2: Feeding Areas

Dugong are known to feed on seagrass in the New Caledonian lagoons (Cleguer et al. 2012). Stable isotope analysis has been undertaken to provide further information on food selection (Cogrel 2017). Soft tissues have been investigated to get information on diet and hard tissue (teeth) to provide information on ontogenetic dietary changes (Cogrel 2017).

Criterion D: Special Attributes

Sub-criterion D1: Distinctiveness

The genetic diversity of dugongs in New Caledonia is low, and there is strong population differentiation indicating low, or no, gene flow between New Caledonia and Australia (Oremus et al. 2011, 2015). Oremus et al. (2011, 2015) analysed sequences of the mitochondrial DNA (mtDNA) control region and genotypes from 10 microsatellite loci from 22 New Caledonia dugongs and compared to sequences from Australia and elsewhere (n = 177+13). Genetic diversity in New Caledonia (mtDNA: h = 0.260, π = 0.12%; microsatellites: A = 3.16) was low in comparison with Australia (h = 0.841 to 0.972 and π = 1.26% to 2.47%, microsatellites: A = 4.82 to 5.80). Six haplotypes were identified in New Caledonia; none of these were found among Australian samples. However, the main haplotype occurring in New Caledonia has been found in Vanuatu (n = 1 sample) and the Solomon Islands (n = 1 sample) suggesting a recent connection within the Melanesian region. Genetic differentiation was also confirmed by AMOVA and Bayesian analyses on microsatellite data. Patterns of mtDNA diversity and neutrality tests support a recent history of population expansion in New Caledonia that could be related to the last glacial period during which the lagoon was re-submerged offering opportunity for seagrass development.

New Caledonian humpback whales constitute the reproductive sub-stock E2 as named by IWC which is genetically different from the other sub-stocks identified in the South Pacific Ocean (Olavarria et al. 2007). MtDNA of 1112 samples collected over the south Pacific (New Caledonia, Tonga, Cook Islands, French Polynesia, Colombia) and Western Australia revealed 115 unique haplotypes. Significant differentiation, at both the haplotype and nucleotide level (FST = 0.033; ΦST = 0.022), were found among the 6 breeding grounds and for most pair-wise comparisons (Olavarria et al. 2007). More recent analyses using 962 samples collected in New Caledonia between 1996 and 2012 reveal a high haplotype diversity (hd=0.3731) and a significant differentiation between the migratory corridors of New Zealand, and North and South Australia (FST=0.00577 p<0.005) (Bonneville et al. 2017).The low level of mtDNA diversity in T. aduncus of New Caledonia suggests a recent population bottleneck or founder effect and isolation. Genetic analysis revealed an extremely low diversity both at mitochondrial (2 haplotypes detected) and nuclear (Allelic Richness = 1 to 8.0) levels, suggesting a shallow genealogical evolutionary history for the species in New Caledonia.

Supporting Information

Andréfouët, S., Chagnaud, N., Chauvin, C., Kranenburg, C.J. 2008. Atlas of French Overseas Coral Reefs. Centre IRD de Nouméa.

Bonneville, C., Anderson, M., Baker, S., Bott, N., Schmitt, N., Oremus, M., Garrigue, C. 2017. Temporal investigation of genetic diversity in humpback whales (Megaptera novaeangliae) wintering in New Caledonia. 2nd Humpback Whale World Congress, 3-7 July 2017, La Réunion Island.

Cleguer, C., Oremus, M., Garrigue, C. 2012. Etude pilote sur la faisabilité d’équiper des dugongs de balises satellitaires afin d’étudier leurs déplacements en Nouvelle-Calédonie. Rapport de la campagne de février-mars 2012. 48p. (AAMP)

Cleguer, C. 2015. Informing dugong conservation at several spatial and temporal scales in New Caledonia. Université Pierre et Marie Curie, Paris (France); James Cook University, Townsville (Australie) + Audiovisuel material

Cleguer, C., Garrigue, C., Fuentes, M.M.P.B., Everingham, Y., Hagihara, R., Hamann, M., Payri, C. and Marsh, H. 2017. Drivers of change in the relative abundance of dugongs in New Caledonia. Wildlife Research. Doi: 10.1071/WR16133

Childerhouse, S., Jackson, J., Baker, C.S., Gales, N., Clapham, P.J., Brownell Jr., R.L. 2009. Megaptera novaeangliae (Oceania subpopulation). In: IUCN 2009. IUCN Red List of Threatened Species. Version 2009.2.

Cogrel, J. 2017. Etude de l’écologie trophique des dugongs an Nouvelle-Calédonie. Master 2 Recherche: Gestion de l’Environnement et écologie littorale. Université de La Rochelle, 52p.

Constantine, R., Jackson, J., Steel, D., Baker, C.S., Brooks, L., Burns, D., Clapham, P., Hauser, N., Madon, B., Mattila, D., Oremus, M., Poole, M., Robbins, J., Thompson, K., Garrigue, C. 2012. Abundance of humpback whales in Oceania using photo-identification and microsatellite genotyping. Marine Ecology Progress Series 453:249-261

Derville, S., Torres, L., Garrigue, C. 2016. Social segregation of humpback whales in contrasted coastal and oceanic breeding habitats. Report to the Scientific Committee of the International Whaling Commission, SC/66b/SH03, Bled, Slovenia

Dupon, J.F. 1981. La Nouvelle-Calédonie: présentation d’ensemble II.b. Oro-hydrographie. In: ORSTOM (ed) Atlas de la Nouvelle-Calédonie, Vol PLanches 1-2-3-7., Paris

Garrigue, C., Greaves, J., Chambellant, M. 2001 Characteristics of the New Caledonian humpback whale population. Memoirs of the Queensland Museum 47:539-546

Garrigue, C., Dodemont, R., Steel, D., Baker, C.S. 2004. Organismal and ‘gametic’ capture-recapture using microsatellite genotyping confirm low abundance and reproductive autonomy of humpback whales on the wintering grounds of New Caledonia. Marine Ecology Progress Series 274:251–262

Garrigue, C. 2007. Marine mammals of New Caledonia and the Loyalty islands. Check list of the species. In: Payri CEeRdF, B. (ed) Compendium of marine species from New Caledonia. Seconde edition IRD, Nouméa, p 415-428, plate 419

Garrigue, C., Patenaude, N., Marsh, H. 2008. Distribution and abundance of the dugong in New Caledonia, southwest Pacific. Marine Mammal Science 24:81-90

Garrigue, C., Oremus, M., Schaffar, A. Patenaude N. 2009. Etude du statut de la population de dugongs en provinces Nord et Sud 2008. Rapport Final. Zoneco-WWF, 59p

Garrigue. C., Zerbini, A.N., Geyer, Y., Heide-Jørgensen, M.P., Hanaoka, W., Clapham, P. 2010. Movements of satellite-monitored humpback whales from New Caledonia. Journal of Mammalogy 91:109-115

Garrigue, C., Poupon, M. 2013. Guide d’identification des mammifères marins de Nouvelle-Calédonie, Vol, Nouméa, Nouvelle-Calédonie

Garrigue, C., Clapham, P.J., Geyer, Y., Kennedy, A.S., Zerbini, A.N. 2015. Satellite tracking reveals novel migratory patterns and the importance of seamounts for endangered South Pacific humpback whales. Royal Society Open Science 2

Garrigue, C., Simar, V., Vély, M. 2016. Megaptera novaeangliae (Borowski, 1781) : baleine à bosse. In : Savouré-Soubelet A. (coord.), Aulagnier S. (coord.), Haffner P. (coord.), Moutou F. (coord.), Canneyt O. van (coord.), Charrassin J.B. (coord.), Ridoux V. (coord.) Atlas des mammifères sauvages de France: volume 1. Mammifères marins. Paris (FRA); Marseille: MNHN ; IRD, 2016, (74), p. 166-169. (Patrimoines Naturels ; 74). ISBN 978-2-85653-787-9

Hagihara, R., Cleguer, C., Garrigue, C. 2016. Improving the time series estimates of dugong abundance and distribution by incorporating revised availability bias correction. Final Report to the Agence des Aires Marines Protégées. 41 pp

Madon, B., Garrigue, C., Pradel, R., Gimenez, O. 2012. Transience in the humpback whale population of New Caledonia and implications for abundance estimation. Marine Mammal Science 29:669-678

Olavarría, C., Baker, C.S., Garrigue, C., Poole, M., Hauser, N., Caballero, S., Flórez-González, L., Brasseur, M., Bannister, J., Capella, J., Clapham, P., Dodemont, R., Donoghue, M., Jenner, J., Jenner, M.N., Moro, D., Oremus, M., Paton, D., Rosenbaum, H., Russell, K. 2007. Population structure of humpback whales throughout the South Pacific and the origin of the eastern Polynesian breeding grounds. Marine Ecology Progress Series 330:257-268

Oremus, M., Garrigue, C., Schaffar, A., Baker, C.S. 2009. Fine-scale demographic and genetic structure in insular Indo-Pacific Bottlenose dolphins (Tursiops aduncus): implications for conservation of populations under removal pressure. XVIIIth Marine Mammals Conference, Quebec, Canada

Oremus, M., Garrigue, C., Cleguer, C. 2011. Isolement et diversité génétiques des dugongs de Nouvelle-Calédonie. 40p. (Province Sud).

Oremus, M., Garrigue, C., Cleguer, C. 2015. Etude génétique complémentaire sur le statut de la population de dugong de Nouvelle Calédonie.46p. (AAMP).

Orgeret, F. 2013. Ecologie de la baleine à bosse Megaptera novaeangliae. Etude de l’abondance et du taux de croissance de la population de baleine à bosse de Nouvelle-Calédonie.

Orgeret, F., Garrigue, C., Gimenez, O., Pradel, R. 2014. Robust assessment of population trends in marine mammals applied to New Caledonian humpback whales. Marine Ecology Progress Series 515:265-273

Testau, J.L., Conand, F. 1983. Estimation des surfaces des différentes zones des lagons de Nouvelle-Calédonie., Nouméa : ORSTOM

Van Canneyt, O., Dorémus, G., Laran, S., Ridoux, V., Watremez, P. 2015. REMMOA Nouvelle-Calédonie, Wallis et Futuna. Rapport de campagne juin 2015. Université de La Rochelle Lagoons of New Caledonia: Reef Diversity and Associated Ecosystems


Download the full account of the New Caledonian Lagoons and Shelf Waters IMMA using the Fact Sheet button below:

To make a request to download the GIS Layer (shapefile) for the New Caledonian Lagoons and Shelf Waters IMMA please complete the following Contact Form:

    * Required fields

    Please read the User Licence Agreement and IMMA Layer Metadata Description
