Eastern North Sea and Southern Slopes of the Norwegian Trench Complex IMMA

Size in Square Kilometres

42,648 km2

Qualifying Species and Criteria

Harbour porpoise – Phocoena phocoena

Criterion B (2), C (2)

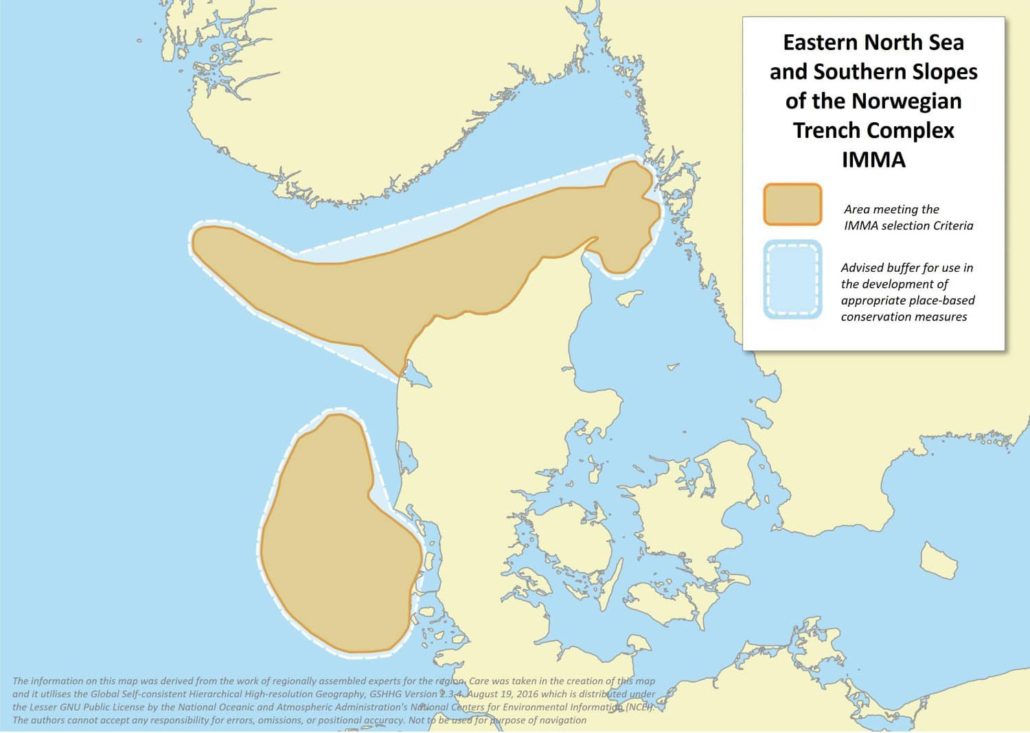

The Eastern North Sea and southern slopes of the Norwegian Trench complex IMMA is characterised by sandbanks, reef structures, and varied bathymetry including the slopes of the deep Norwegian Trench. Due to food-rich fronts and upwelling this is a productive area providing prey for harbour porpoises (Phocoena phocoena). Two decades of dedicated visual surveys and satellite tracking have provided clear evidence that the IMMA represents important habitats with high harbour porpoise densities throughout the year. The boundary was drawn to include the harbour porpoise high-density areas based on predictions from different species distribution models and kernel density from satellite tracking conducted over the last decades.

Description of Qualifying Criteria

Criterion B: Distribution and Abundance

Sub-criterion B2: Aggregations

More than 20 years of dedicated visual surveys and habitat-based spatial modelling provided clear evidence that the IMMA includes important habitat for harbour porpoises (Phocoena phocoena) throughout the year (Gilles et al. 2009, 2011, 2016; Waggitt et al. 2020; Nachtsheim et al. 2021; Hansen et al. 2021, 2022; Geelhoed et al. 2022, Lacey et al. 2022).  Harbour porpoises occur in the areas at higher density than in surrounding waters and aggregations have been observed consistently during all study years. A relatively high mean harbour porpoise density of 1.4 ind. /km2 (Gilles et al. 2016) is recorded in the southern IMMA polygon, in Sylt Outer Reef and Horns Rev. Further, high density areas for harbour porpoises were shown in the northern polygon, by means of satellite tracking, with aggregations extending from the northern Kattegat, southern Skagerrak along the southern slope of the Norwegian Trench (Sveegaard et al. 2011, 2018). Satellite tagging of six harbour porpoises in the northern part of the Wadden Sea inside this IMMA showed unexpectedly local and relatively small home ranges as well as very little overlap in distribution with porpoises tagged in Skagerrak. Albeit the small sample size, this may indicate a local population of harbour porpoises residing in this part of the Wadden Sea (van Beest et al. 2018;

Criterion C: Key Life Cycle Activities

Sub-criterion C2: Feeding Areas

The high porpoise densities and aggregations recorded in this IMMA are indicative of an abundance of prey fish species, nourished by food-rich fronts and upwelling areas. The areas host fish species characteristically found on sandbanks (such as many flatfish species), but also sandeels (Ammodytes spp.) and reef dwellers, for example cod (Gadus morhua), and pelagic species such as sprat (Sprattus sprattus) and herring (Clupea harengus). All these species are described as prey species for harbour porpoises (Benke et al. 1998; Gilles 2008; Leopold et al. 2015; Andreasen et al. 2017). Furthermore, porpoises have been connected with the high presence of herring in the Skagerrak (Sveegaard et al. 2012). Harbour porpoises have been shown to feed nearly continuously (Wisniewska et al. 2016, Rojana-Donate et al. 2018). Their aggregations shown by telemetry (Sveegaard et al. 2018) indicate a strong association to feeding grounds.

Supporting Information

Andreasen, H., Ross, S. D., Siebert, U., Andersen, N. G., Ronnenberg, K., Gilles, A. (2017). Diet composition and food consumption rate of harbor porpoises (Phocoena phocoena) in the western Baltic Sea. Mar. Mammal. Sci. 33, 1053–1079. doi: 10.1111/mms.12421

Benke, H., Siebert, U., Lick, R., Bandomir, B., and Weiss, R. (1998). The current status of harbour porpoises (Phocoena phocoena) in German waters. Arch. Fish. Mar. Res. 46, 97-123.

Frankish, C.K., von Benda-Beckmann, A.M., Teilmann, J., Tougaard, J., Dietz, R., Sveegaard, S., Binnerts, B., de Jong, C.A.F., Nabe-Nielsen, J., 2023. Ship noise causes tagged harbour porpoises to change direction or dive deeper. Mar. Pollut. Bull. 197, 115755. doi:10.1016/j.marpolbul.2023.115755

Geelhoed, S., Authier, M., Pigeault, R., Gilles, A. 2022. Abundance and Distribution of Cetaceans. In: OSPAR, 2023: The 2023 Quality Status Report for the North-east Atlantic. OSPAR Commission, London. Available at: https://oap.ospar.org/en/ospar-assessments/quality-status-reports/qsr-2023/indicator-assessments/abundance-distribution-cetaceans/

Gilles, A. (2008). Chapter V, Feeding ecology of harbour porpoises. In: Characterisation of harbour porpoise (Phocoena phocoena) habitat in German waters. Ph.D. thesis, Christian-Albrechts-Universität zu Kiel, Kiel. 151 pp. Available online at: https://macau.uni-kiel.de/receive/diss_ mods_00003429

Gilles, A., Andreasen, H., Müller, S., Siebert, U. (2008). Nahrungsökologie von marinen Säugetieren und Seevögeln für das Management von Natura 2000 Gebieten. Teil: Marine Säugetiere. Final report submitted to German Federal Agency for Nature Conservation BfN (FKZ 805 85 018). 65 pp.

Gilles, A., Scheidat, M., Siebert, U., (2009). Seasonal distribution of harbour porpoises and possible interference of offshore wind farms in the German North Sea. Mar. Ecol. Prog. Ser. 383, 295–307. doi:10.3354/meps08020

Gilles, A., Adler, S., Kaschner, K., Scheidat, M., Siebert U. (2011). Modelling har-bour porpoise seasonal density as a function of the German Bight environment: implications for management. Endangered Species Research 14: 157-169

Gilles, A., Viquerat, S., Becker, E.A., Forney, K.A., Geelhoed, S.C.V., Haelters, J., Nabe-Nielsen, J., Scheidat, M., Siebert, U., Sveegaard, S., van Beest, F.M., van Bemmelen, R., Aarts, G. (2016). Seasonal habitat-based density models for a marine top predator, the harbor porpoise, in a dynamic environment. Eco-sphere 7(6):e01367. 10.1002/ecs2.1367

Fonselius, S (1996) The Upwelling of Nutrients in the Central Skagerrak. Topical Studies in Oceanography 43 (1): 57–72.

Hansen, J. W., Høgslund, S., Bruhn, A., Carstensen, J., Dahl, K., Galatius, A., Göke, C., Hansen, J. L. S., Krause-Jensen, D., Kyhn, L. A., Larsen, M. M., Markager, S., Mohn, C., Petersen, I. K., Strand, J., Stæhr, P. A., Sveegaard, S., Tairova, Z., Teilmann, J., & Tougaard, J. (2021). Marine områder 2020: NOVANA. DCE-Nationalt Center for Miljø og Energi, Aarhus Universitet. https://dce2.au.dk/pub/SR475.pdf

Hansen, J. W., Høgslund, S., Bruhn, A., Buur, H., Carstensen, J., Dahl, K., Galatius, A., Göke, C., Hansen, J. L. S., Kyhn, L. A., Larsen, M. M., Markager, S., Mohn, C., Nielsen, R. D., Petersen, I. K., Strand, J., Stæhr, P. A., Sveegaard, S., Tairova, Z., … Tougaard, J. (2023). Marine områder 2021: NOVANA. Aarhus Universitet. Videnskabelig rapport fra DCE – Nationalt Center for Miljø og Energi Nr. 529. https://dce2.au.dk/pub/SR529.pdf

Hammond, PS, Macleod, K, Berggren, P, Borchers, DL, Burt, ML, Cañadas, A, Desportes, G, Donovan, GP, Gilles, A, Gillespie, D, Gordon, J, Hedley, S, Hiby, L, Kuklik, I, Leaper, R, Lehnert, K, Leopold, M, Lovell, P, Øien, N, Paxton, CGM, Ridoux, V, Rogan, E, Samarra, F, Scheidat, M, Sequeira, M, Siebert, U, Skov, H, Swift, R, Tasker, ML, Teilmann, J, Van Canneyt, O, Vázquez, JA. (2013). Cetacean abundance and distribution in European Atlantic shelf waters to inform conservation and management. Biological Conservation 164: 107-122

IJsseldijk, L.L., ten Doeschate, M.T.I., Brownlow, A., Davison, N.J., Deaville, R., Galatius, A., Gilles, A., Haelters, J., Jepson, P.D., Keijl, G.O., Kinze, C.C., Olsen, M.T., Siebert, U., Thøstesen, C.B., van den Broek, J., Gröne, A., Heesterbeek, H., 2020. Spatiotemporal mortality and demographic trends in a small cetacean: Strandings to inform conservation management. Biol. Conserv. 249, 108733. doi:10.1016/j.biocon.2020.108733

Lacey, C., Gilles, A., Börjesson, P., Herr, H., Macleod, K., Ridoux, V., Santos, M.B., Scheidat, M., Teilmann, J., Vingada, J., Viquerat, S., Øien, N., Hammond, P. (2022). Modelled density surfaces of cetaceans in European Atlan-tic waters in summer 2016 from the SCANS-III aerial and shipboard surveys. Final report. available from https://scans3.wp.st-andrews.ac.uk/files/2022/08/SCANS-III_density_surface_modelling_report_final_20220815.pdf

Leopold, M. F., Begeman, L., Heße, E., van der Hiele, J., Hiemstra, S., Keijl, G., Meesters, E. H., Mielke, L., Verheyen, D., Gröne, A. (2015). Porpoises: from predators to prey. J. Sea Res. 97, 14–23. doi: 10.1016/j.seares.2014.12.005

Nachtsheim, D., Viquerat, S., Ramirez-Martinez, N.C., Unger, B., Siebert, U., Gilles, A. (2021). Small cetaceans in a human high-use area: Trends in harbour por-poise abundance in the North Sea over two decades. Frontiers in Marine Sci-ence. Frontiers in Marine Science 7:606609. doi: 10.3389/fmars.2020.606609

Oug, Eivind, Marit E. Christiansen, Kristine Dobbe, Ann-Helén Rønning, Torkild Bakken, and Jon A. Kongsrud. (2015). Mapping of Marine Benthic Invertebrates in the Oslofjord and the Skagerrak: Sampling Data of Museum Collections from 1950-1955 and from Recent Investigations. Fauna Norvegica 35: 35–45. https://doi.org/10.5324/fn.v35i0.1944

Siebert, U., Gilles, A., Lucke, K., Ludwig, M., Benke, H., Kock, K.-H., et al. (2006). A decade of harbour porpoise occurrence in German waters – analyses of aerial surveys, incidental sightings and strandings. J. Sea Res. 56, 65–80. doi: 10.1016/j.seares.2006.01.003

Sonntag, R., Benke, H., Hiby, A. R., Lick, R., and Adelung, D. (1999). Identification of the first harbour porpoise (Phocoena phocoena) calving ground in the North Sea. J. Sea Res. 41, 225–232. doi: 10.1016/S1385-1101(98) 00050-1

Sveegaard, S., Teilmann, J., Tougaard, J., Dietz, R., Mouritsen, H., Desportes, G., and Siebert, U. (2011). High density areas for harbor porpoises (Phocoena phocoena) identified by satellite tracking. Marine Mammal Science 27: 230–246.

Sveegaard, S., Nabe-Nielsen, J., Stæhr, K-J., Jensen, T. F., Mouritsen, K. N., & Teilmann, J. (2012). Spatial interactions between marine predators and their prey: herring abundance as a driver for the distributions of mackerel and harbour porpoise. Marine Ecology – Progress Series, 468, 245-253. https://doi.org/10.3354/meps09959

Sveegaard, S., Nabe-Nielsen, J. & Teilmann, J. 2018. Marsvins udbredelse og status for de marine habitatområder i danske farvande. Aarhus Universitet, DCE – Nationalt Center for Miljø og Energi, 36 s. – Videnskabelig rapport nr. 284 http://dce2.au.dk/pub/SR284.pdf

Rojano-Doñate, L., McDonald, B. I., Wisniewska, D. M., Johnson, M., Teilmann, J., Wahlberg, M., Højer-Kristensen, J., Madsen, P.T. (2018). High Field Metabolic Rates of Wild Harbour Porpoises. Journal of Experimental Biology 221 (23): jeb185827. https://doi.org/10.1242/jeb.185827.

van Beest, F.M., Teilmann, J., Dietz, R., Galatius, A., Mikkelsen, L., Stalder, D., Sveegaard, S., Nabe-Nielsen, J. (2018). Environmental drivers of harbour porpoise fine-scale movements. Mar. Biol. 165, 95. doi:10.1007/s00227-018-3346-7

Waggitt, J.J., Evans, P.G.H. , Andrade, J., Banks, A., Boisseau, O., Bolton, M., Brad-bury, G., Brereton, T.; Camphuysen, K.C.J.; Durinck, J.; Felce, T.; Fijn, R.C., Garcia-Baron, I.,Garthe, S., Geelhoed, S.C.V., Gilles, A., Goodall, M., Haelters, J., Hamilton, S., Hartny-Mills, L., Hodgins, N., Jessopp, M., Kavanagh, A.S., Le-opold, M.,  Lohrengel, K., Louzao, M., Markones, N.,  Martinez-Cadiera, J.,  O’Cadhla, O.,  Perry, S.L., Pierce, G.J., Ridoux, V., Robinson, K., Santos, B., Saavedra, C., Skov, H., Stienan E.W.M., Sveegaard, S., Thompson, P., Vaner-man, N., Wall, D., Webb, A., Wilson, J., Wanless, S., Hiddink J.G. (2020). Distribution maps of cetacean and seabird populations in the North-East Atlantic. Journal of Applied Ecology 57: 253-269. DOI: 10.1111/1365-2664.13525

Wisniewska, D. M. M., Johnson, M., Teilmann, J., Rojano-Doñate, L., Shearer, J., Sveegaard, S., et al. (2016). Ultra-high foraging rates of harbor porpoises make them vulnerable to anthropogenic disturbance. Curr Biol 26, 1441–1446. doi: 10.1016/j.cub.2016.03.069
